Enduro’s RX-102 Pipeline Pig Tracking Receiver

$5,814.00Excl. VAT

22 Hz Receiver with built-in OLED graph display

The RX-102 Tracking Receiver is a complete 22 Hz and Acoustic (Geophone) tracking solution with built-in geophone amplifier.

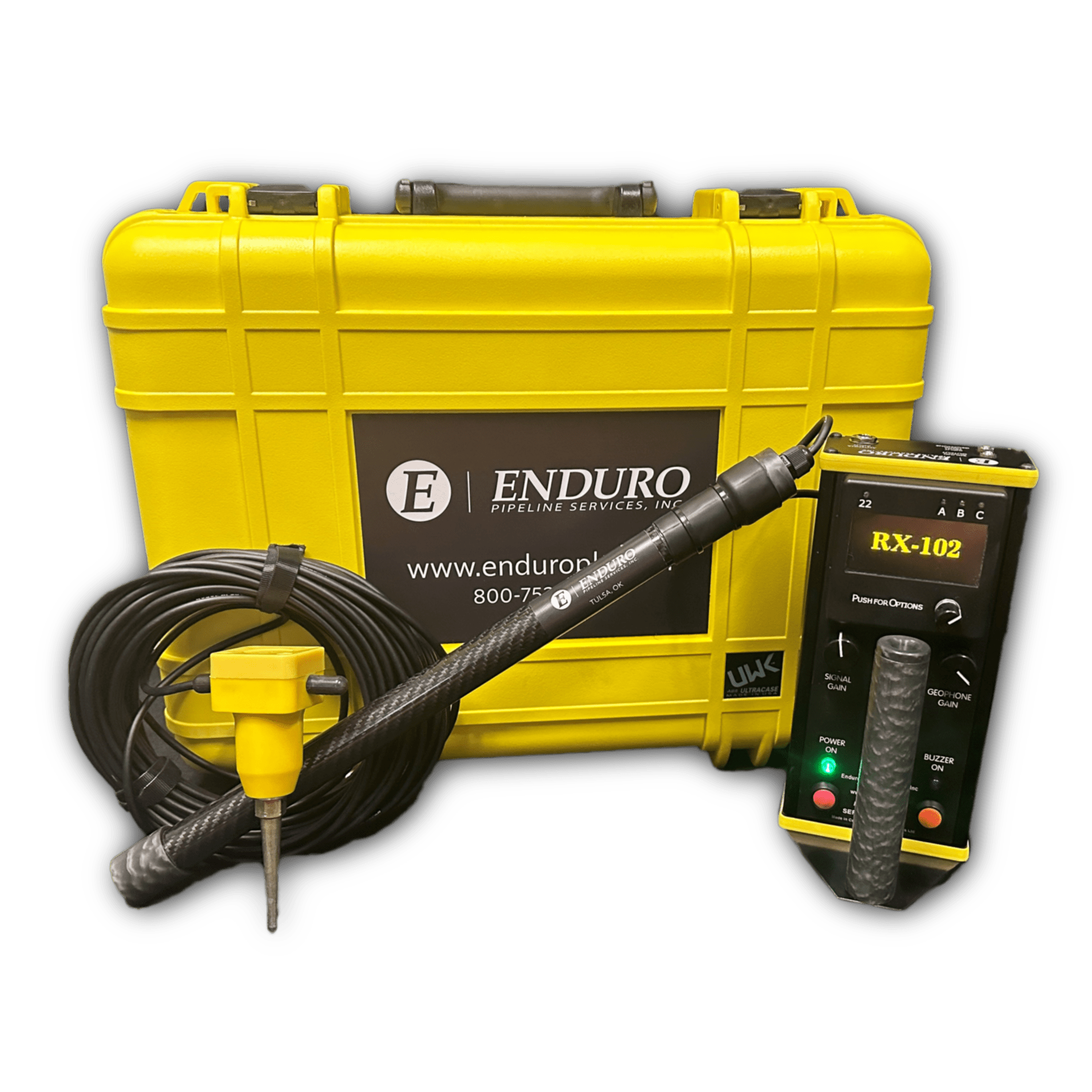

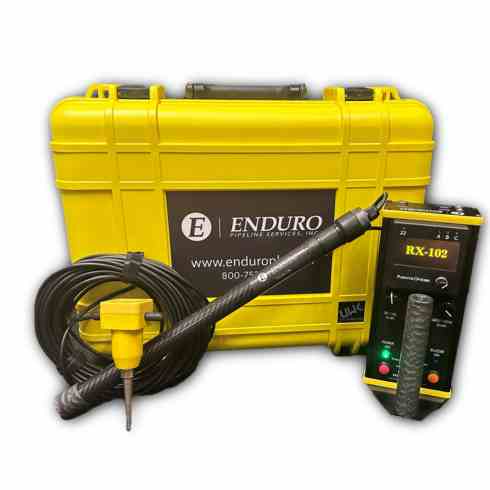

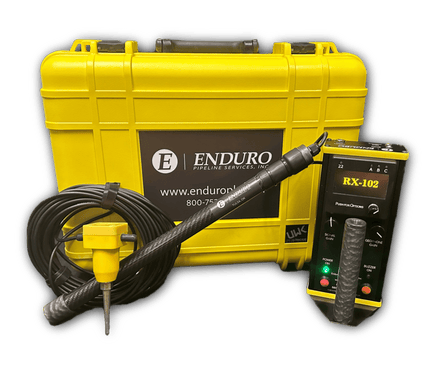

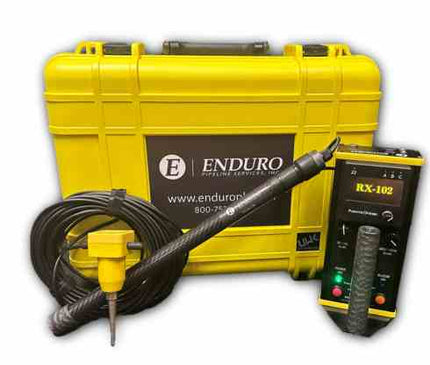

Kit Includes:

  • Receiver with built-in geophone amplifier
  • External wand antenna with 6' cable
  • 50' antenna extension cable
  • Geophone probe with 50' cable
  • 6' vehicle stereo audio cable
  • (1/8 in or 3.5 mm jack)
  • Impact-resistant weatherproof hard case
  • 5- C Alkaline Batteries

 Features

  • Industry-standard 22 Hz Receivers
  • The receiver is weather-resistant
  • The ability to detect coded transmitters comes standard.
  • Very sensitive to power line hum reduction circuitry
  • Built-in internal antenna.
  • Pluggable long-range external antenna
  • Built-in Geophone Amplifier!
  • Analog meter for 22 Hz signal strength
  • Excellent for precise 'null' measurements
  • Digital bars for 22 Hz and Geophone signal
  • Very long range with an external antenna
    Visit our resource page for manual

 Need a cleaning pig too?  Enduro offers a range of cleaning pig options, backed by expert guidance.  Visit: Pipeline Cleaning Pigs | Enduro Cleaning Pig Tools

Disclaimer and Notes

If you have questions about this product, please call  800.752.1628 or email info@enduropls.com.  All orders are subject to a 20% restocking fee.

Share with your friends

In stock products ordered before 1 p.m. (CT: M-F) ship the same day.

Description

The RX-102 helps field personnel detect and locate pigs equipped with compatible 22 Hz transmitters. Operators use the receiver’s signal-strength display, internal or external antenna, and precise null measurements to identify pig passage or narrow down the location of a stationary pig. The built-in geophone amplifier also supports acoustic passage confirmation using the supplied geophone probe.

Tracking Receiver RX 102 Kit Includes:

  • Weather-resistant receiver with built-in geophone amplifier
  • External wand antenna with 6' cable
  • 50' antenna extension cable
  • Geophone probe with 50' cable
  • 6' vehicle stereo audio cable
  • (1/8 in or 3.5 mm jack)
  • Impact-resistant, weatherproof hard case
  • 5- C Alkaline Batteries
  • RX-102 Manual
